ESAC Series X-band [4 kW] MAF1421B [6 kW] MAF1422B [10 kW] MAF1425B

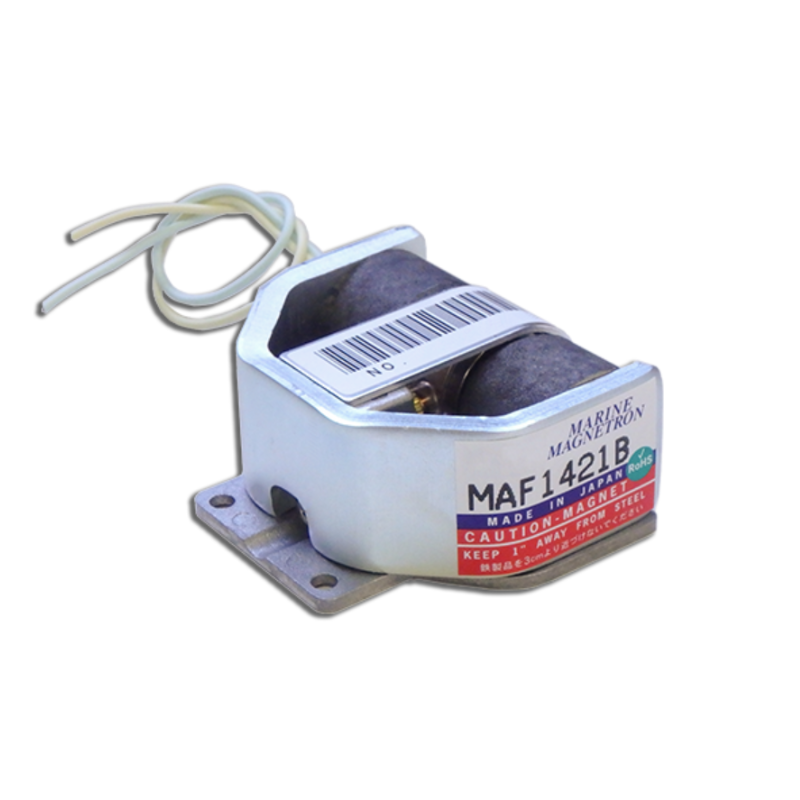

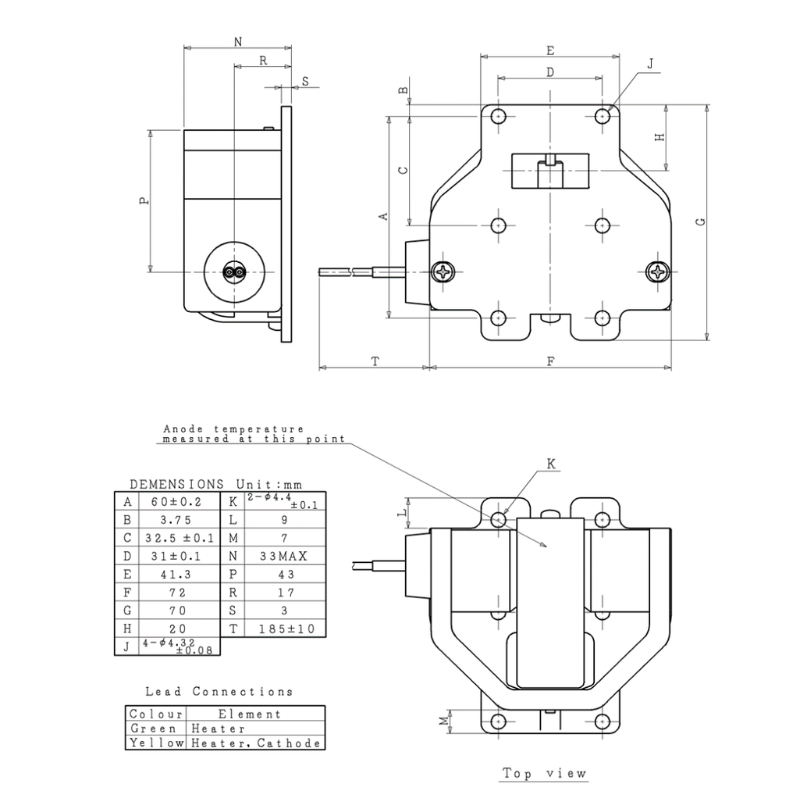

MAF1421B

X-band 4 kW Magnetron, ESAC series

Liên hệ

Frequency

Output power (Peak)

Duty cycle / Pulse duration

Others

RoHS compliant
ESAC: Extended Surface Area Cathode
Electrical specifications of MSF types are as same as one of identical number of MAF types.
MAF type magnetrons will be recommended for new radar design.

Spec

Items	Parameters
Frequency	9380 to 9440 MHz (Fixed)
Output power (Peak)	4 kW
Duty cycle / Pulse duration	0.001 / 1.0 μsec
Anode voltage (Peak)	3.6 kV
Anode current (Peak)	3 A
Heater voltage	6.3 V
Heater current	0.55 A
RF output interface	Waveguide: WR90 RF flange: UG-135/U Equivalent
Power supply interface	Lead wire
Cooling	Air / Forced air
Weight	0.4 kg
