Marine Magnetrons X-band 25 kW,50 kW

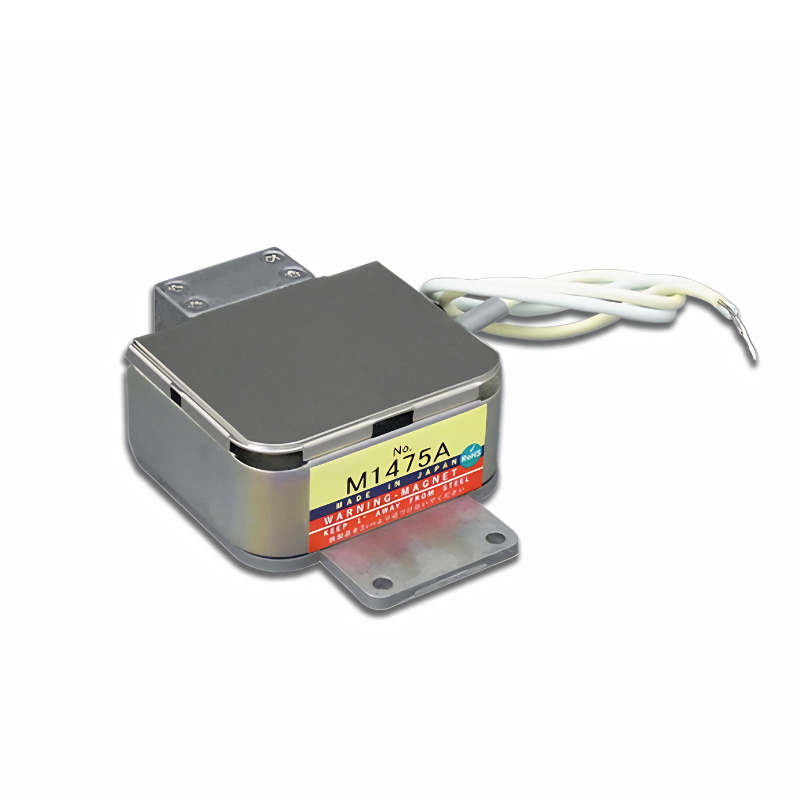

M1475A

X-band 25 kW Magnetron

Liên hệ

Frequency

Output power (Peak)

Duty cycle / Pulse duration

Others

Spec

Items	Parameters
Frequency	9345 to 9405 MHz (Fixed)
Output power (Peak)	25 kW
Duty cycle / Pulse duration	0.001 / 1.00 μsec
Anode voltage (Peak)	8 kV
Anode current (Peak)	8 A
Heater voltage	6.3 V (@ Preheat)
Heater current	0.52 A
RF output interface	Waveguide: WR90 RF flange: UG-135/U Equivalent
Power supply interface	Lead wire
Cooling	Air / Forced air
Weight	0.7 kg
