Lower-band 12.75 ~ 13.25 GHz
NJT8316 series
Lower Ku-band 4W BUC
- 4W
- 2W
Liên hệ

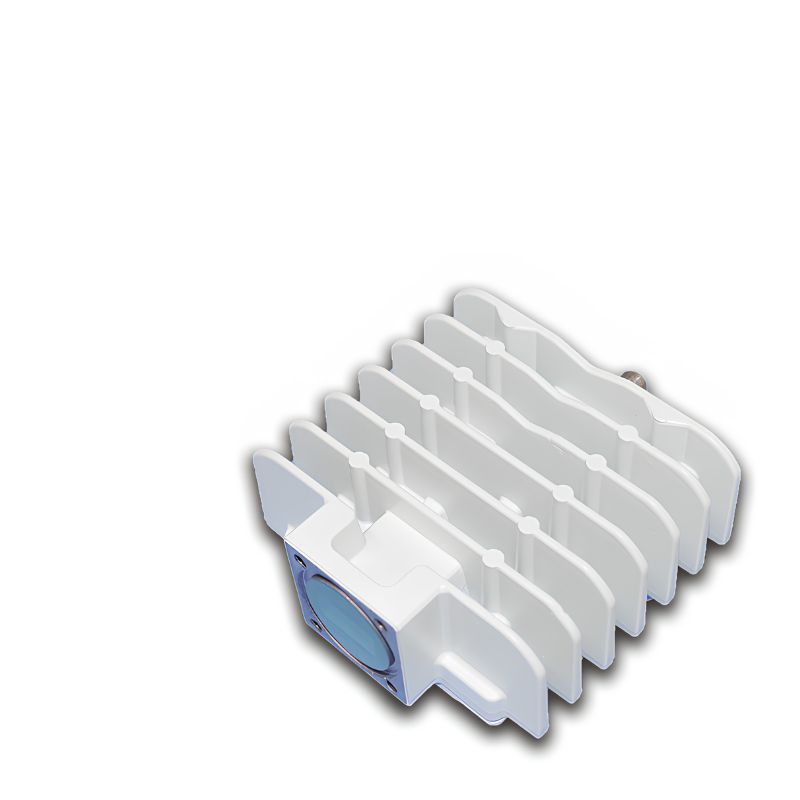

NJT8316L is a block up-converter to Lower Ku-band 12.75 to 13.25 GHz, and transmits the amplified RF signals of up to 4W(+36 dBm) of P1dB, with an weatherized compact enclosure.
Features
Frequency Organization
- RF Frequency: 12.75 to 13.25 GHz
- IF Frequency: 950 to 1,450 MHz
- LO Frequency: 11.8 GHz
High Efficiency & Low Distortion Output Power
- P1dB: +36 dBm min. over temperature
- ACPR: -26 dBc @ Pout = +35 dBm
- Power Consumption: 28 W
Small Size & Light Weight
- Weight: 500 g
Others
- RoHS Compliance
Series Line-up
| Model No. | RF Frequency | Output Power | IF Connector |
| NJT8316LN | 12.75 to 13.25 GHz | +36 dBm min. @ P1dB (4W) | N-type (50Ω) |
|---|---|---|---|
| NJT8316LF | F-type (75Ω) |
Spec
| Items | Parameters | ||
|---|---|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) | ||
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) Coax. Connector, F-type Female (75 Ω) | ||
| RF Frequency | 12.75 to 13.25 GHz | ||
| IF Frequency | 950 to 1,450 MHz | ||
| LO Frequency | 11.8 GHz | ||
| P1dB Output Power | +36 dBm min. over temperature (@ 1dB G.C.P.) | ||
| ACPR | -26 dBc max. @ Pout = +35 dBm | ||
| Linear Gain | 62 dB nom., 56 dB min. | ||
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) | ||
| Power Consumption @ P1dB | 28 W typ., 32 W max. | ||
| Operating Temperature Range | -40 to +60 ℃ | ||
| Waterproof / Dustproof (IP-code) | IP67 | ||
| Weight | 500 g | ||
| Dimensions | (L) 98 x (W) 98 x (H) 42.5 mm (w/o Interfaces & Screws) | ||
