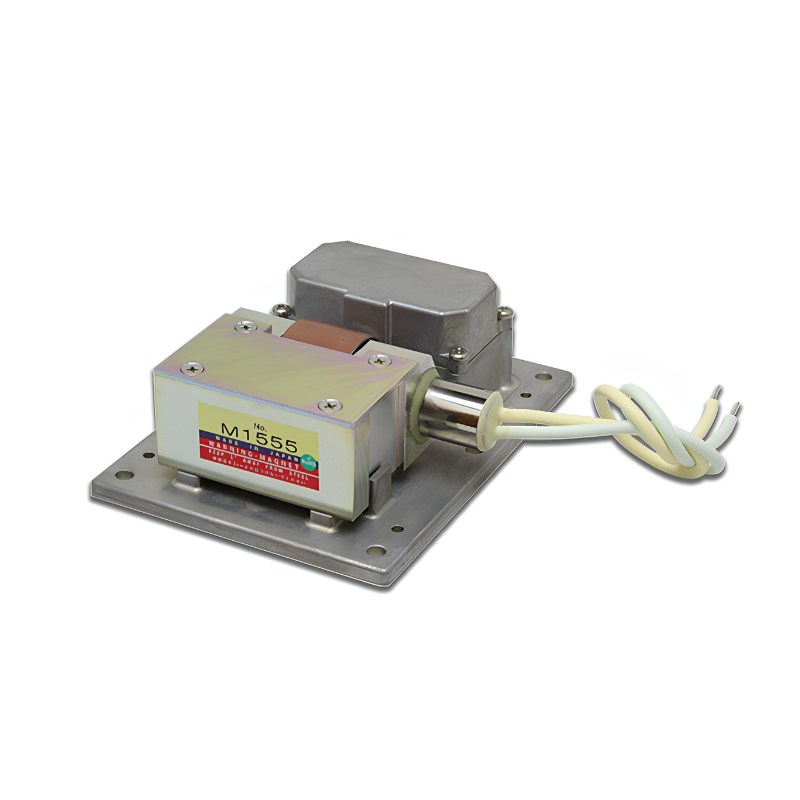

Advanced Spectrum Controlled Magnetrons S-band [30 kW] M1555 [60 kW] M1556
M1555
S-band 30kW Magnetron, Advanced Spectrum Controlled
Liên hệ
Features
Frequency
- 3040 to 3060 MHz (Fixed)
Output power (Peak)
- 30 kW
Duty cycle / Pulse duration
- 0.001 / 1.0 μsec
Others
- RoHS compliant
Spec
| Items | Parameters | ||
|---|---|---|---|
| Frequency | 3040 to 3060 MHz (Fixed) | ||
| Output power (Peak) | 30 kW | ||
| Duty cycle / Pulse duration | 0.001 / 1.0 μsec | ||
| Anode voltage (Peak) | 8 kV | ||
| Anode current (Peak) | 8 A | ||
| Heater voltage | 6.3 V (@ Preheat) | ||
| Heater current | 1.3 A | ||
| RF output interface | Waveguide: WR284 | ||
| Power supply interface | Lead wire | ||
| Cooling | Air / Forced air | ||
| Weight | 1.7 kg | ||
![Advanced Spectrum Controlled Magnetrons S-band [30 kW] M1555 [60 kW] M1556](http://teknix.com.vn/wp-content/uploads/2026/04/advanced-spectrum-controlled-magnetrons-s-band.png)
