NJR4267 series

24GHz Motion Detector / Radar Sensor Doppler Module, Digital Output / High Sensitivity Type

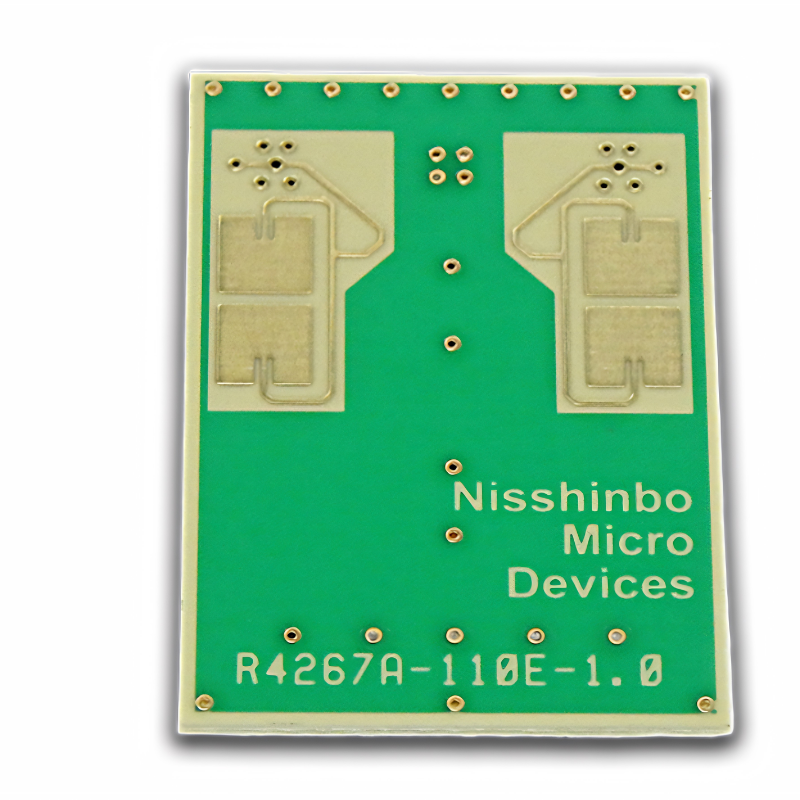

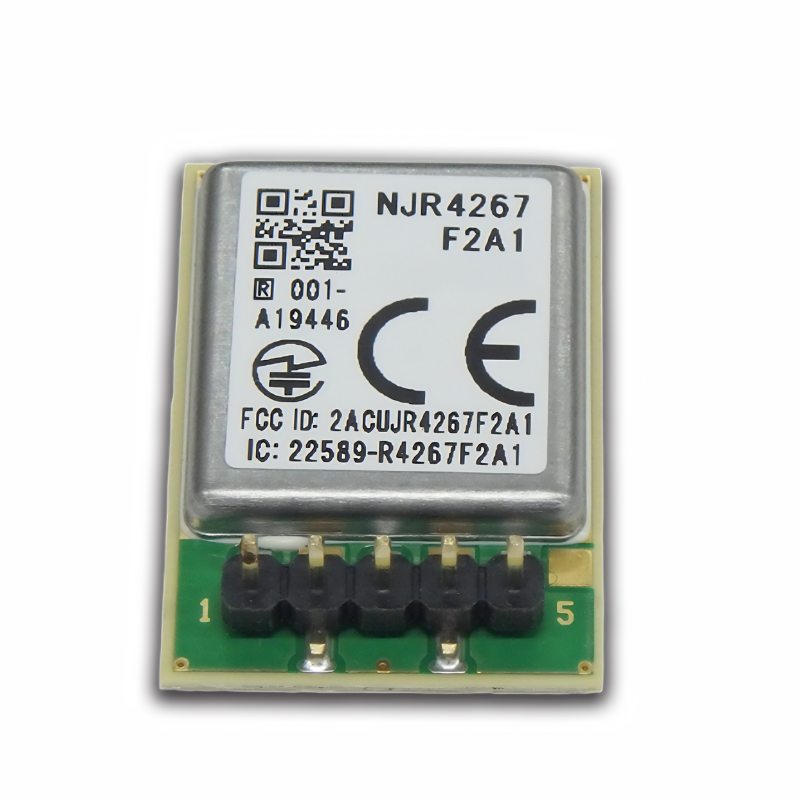

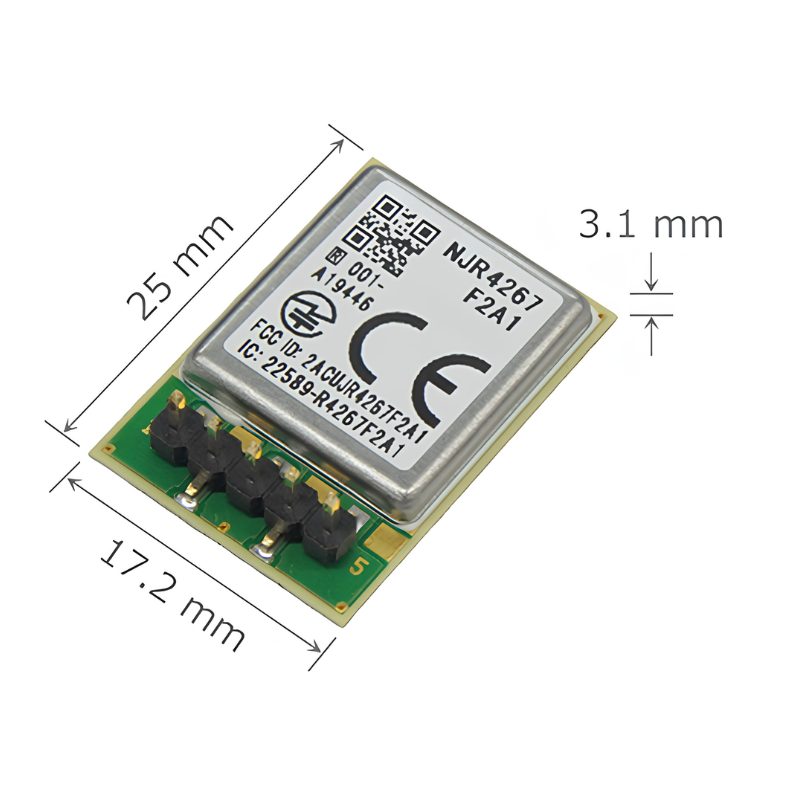

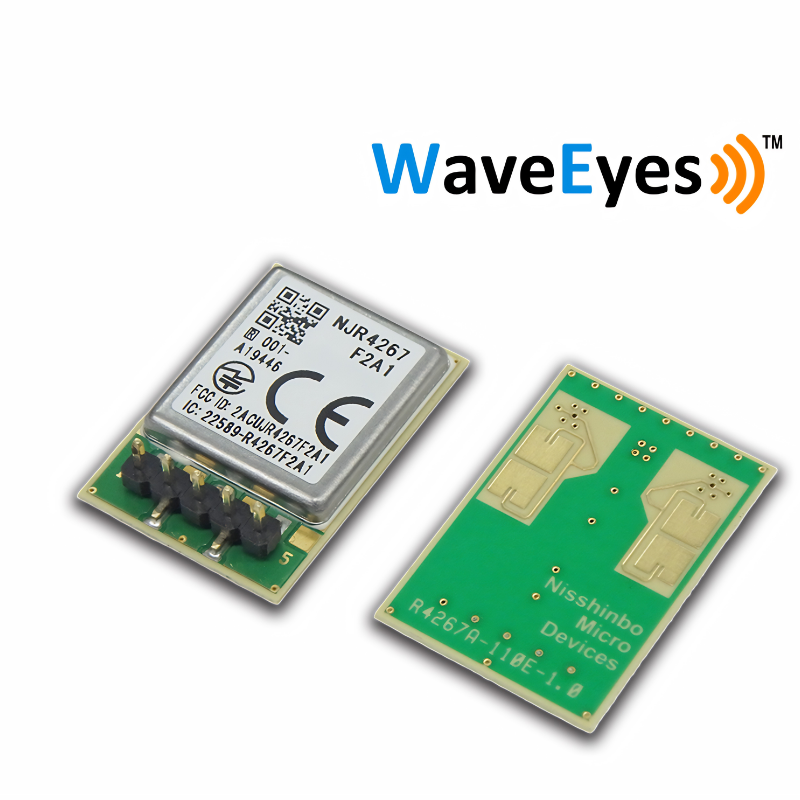

The NJR4267 is a microwave 24GHz Doppler sensor module in a small and low profile package measuring 17.2 x 25 x 3.1 mm. Despite its small size, it is an all-in-one module with built-in microwave circuit, antenna, and MCU for control and signal processing.

Features

- Motion detector using the 24GHz Microwave Doppler

- Antenna, RF circuit, IF amp, MCU and voltage regulator are integrated

- Equipped with an optimal algorithm for detecting moving objects

- Supports UART/PWM/CMOS level output interface

- Low power consumption due to intermittent operation

- Antenna angle (half width) V plane 80°/H plane 110°

Small and low profile package

Series Line-up

Part No.	RF Frequency	Antenna Type	Region / Regurations
NJR4267F2A1	24.15 to 24.25 GHz (F2 type)	1×1 antenna (Range: 20 m) (Angle: 80° / 110°)	Japan / Technical Conformity [Certified] EU / CE – RE Directive [Certified] → USA / FCC Certification [Certified]
NJR4267F2B1	24.15 to 24.25 GHz (F2 type)	2×1 antenna (Range: 30 m) (Angle: 84° / 66°)	Japan / Technical Conformity [Certified] EU / CE – RE Directive [Certified] →
NJR4267F3B1	24.075 to 24.175 GHz (F3 type)	2×1 antenna (Range: 30 m) (Angle: 84° / 66°)	Japan / Technical Conformity [Certified] USA / FCC Certification [Certified]

Outline Drawing

Digital Output Type K-band: 24GHz-band

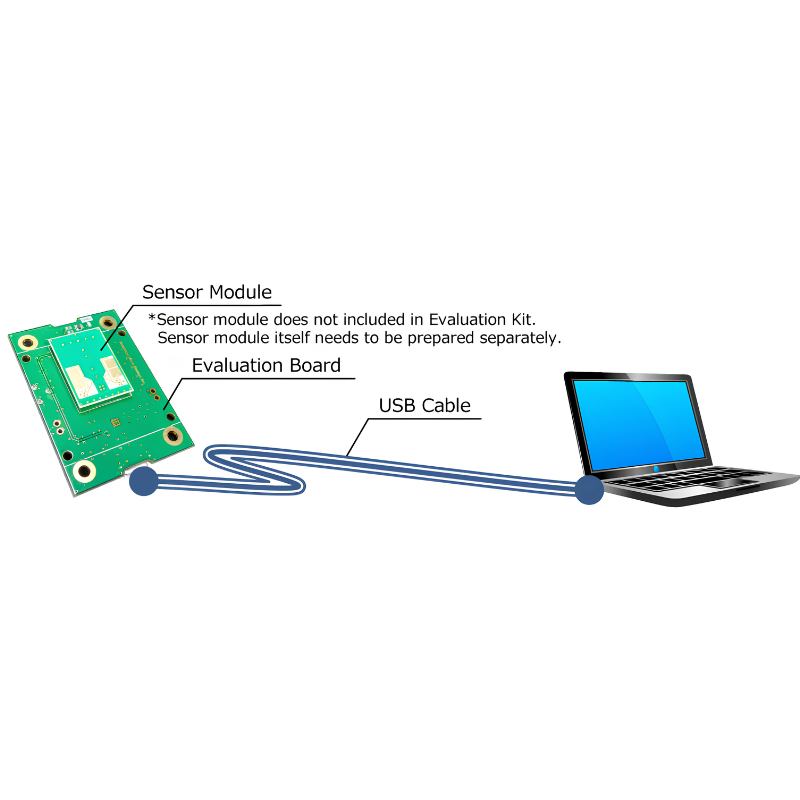

Evaluation Kit

Đánh giá

Chưa có đánh giá nào.

Items	Parameters
RF Frequency	24.15 to 24.25 GHz or 24.075 to 24.175 GHz
Output Transmission Power	E.I.R.P. +10.1 dBm (Depends on antenna type)
Maximum Detection Distance	20 to 30 m (Pedestrian / Depends on antenna type)
Antenna Angle	66° to 110° (Depends on antenna type)
Detectable Speed Range	0.13 to 19.2 m/s (Reference)
Power Supply	Input Voltage: 3.8 to 5.8 V Current: 1.5 to 55 mA (Depends on operating conditions)
Operating Temperature Range	-30 to +85 ℃
Dimensions	(L) 25 x (W) 17.2 x (H) 3.1 mm
Weight	typ. 1.9 g
