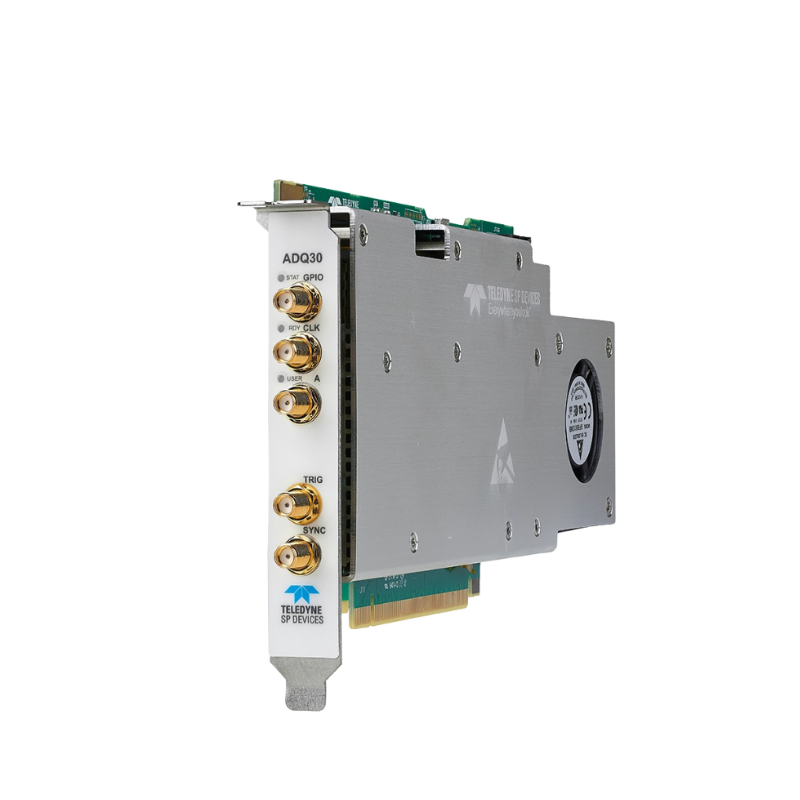

High-performance 12-bit, 1 GSPS digitizer ADQ30

12 bits vertical resolution
1 channel at 1 GSPS sampling rate
DC-coupled with up to 1 GHz input bandwidth (0.5 Vpp input range)
Programmable DC-offset
8 Gbyte onboard memory
Open FPGA for custom real-time signal processing requires DEVDAQ
Application-specific firmware options
Peer-to-peer streaming to GPU at 7 Gbyte/s
Hardware triggers and GPIO
PCIe, USB 3.2 form factor

Liên hệ

Mô tả
Đánh giá (0)

ADQ30 offers a single-channel configuration with 1 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals.
The open onboard AMD Kintex Ultrascale KU040 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP).
ADQ30 supports peer-to-peer streaming of up to 7 Gbyte/s either to the host PC, or to graphics processing units (GPUs).

Applications

Time-of-Flight Mass Spectrometry
Distributed Fiber Optical Sensing
LiDAR
Scientific instruments

Ordering Information

Options	Comment
Hardware Options
PCIe, USB 3.2	Host PC interface
Firmware options
FWDAQ	Always included. Default data acquisition firmware.
FWATD	Optional waveform averaging firmware
FWPD	Optional pulse detection firmware.
DEVDAQ	Optional FPGA development kit based on FWDAQ.
Additional accessories
W5Y	Optional 2-year warranty extension (and 5 years in total).
Software
Digitizer Studio	Always included. Software for control and configuration.
