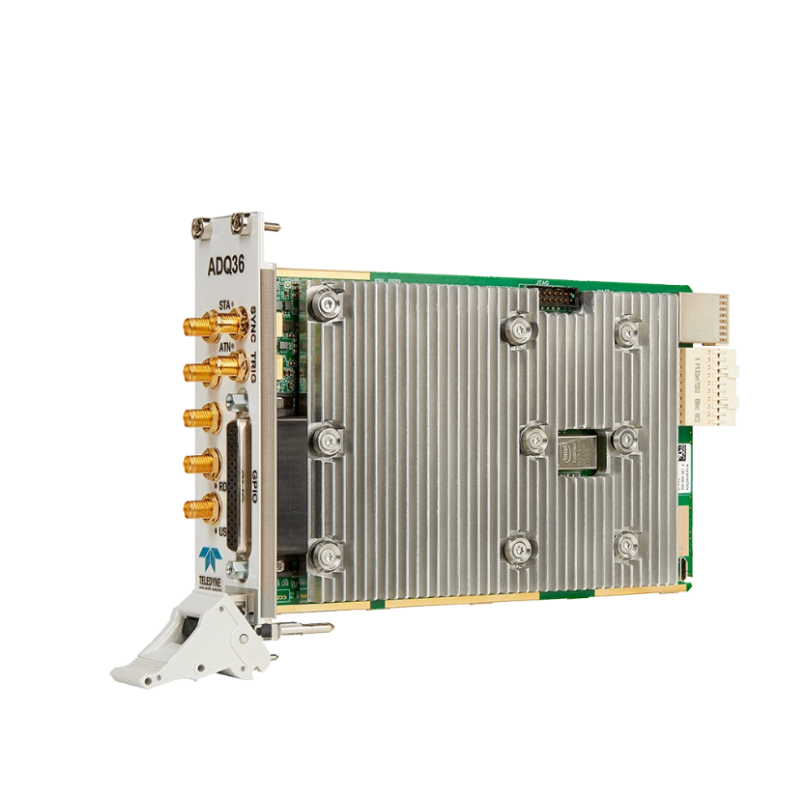

High-performance 12-bit, 5 GSPS digitizer ADQ36

12 bits vertical resolution
Up to 5 GSPS sampling rate
4 channels at 2.5 GSPS or 2 channels at 5 GSPS (software-selectable)
DC-coupled with up to 2.5 GHz input bandwidth (0.5 Vpp input range)
Programmable DC-offset
8 Gbyte onboard memory
Open FPGA for custom real-time signal processing requires DEVDAQ
Application-specific firmware options
Peer-to-peer streaming to GPU at 7 Gbyte/s
Hardware triggers and GPIO
PXIe form factor

Liên hệ

Mô tả
Đánh giá (0)

ADQ36 offers software-selectable two- or four-channel configuration with 5 or 2.5 GSPS sampling rates respectively. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard AMD Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ36 supports peer-to-peer streaming of up to 7 Gbyte/s either to the host PC or to graphics processing units (GPUs).

Applications

LiDAR
Beam Position Monitor
High energy physics

Ordering Information

Options	Comment
Hardware Options
PXIe	Host PC interface
Firmware options
FWDAQ	Always included. Default data acquisition firmware.
FWPD	Optional pulse detection firmware.
DEVDAQ	Optional FPGA development kit based on FWDAQ.
Additional accessories
W5Y	Optional 2-year warranty extension (and 5 years in total).
Software
Digitizer Studio	Always included. Software for control and configuration.
