High-performance 14-bit, 1.6 GSPS digitizer

14 bits vertical resolution
Up to 1.6 GSPS sampling rate
AC-coupled with up to 750 MHz input bandwidth (2.2 Vpp input range)
512 Msamples onboard memory
Open FPGA for custom real-time signal processing requires DEVDAQ
Hardware triggers and GPIO
USB 3.0, PXIe, PCIe form factors

Liên hệ

Mô tả
Đánh giá (0)

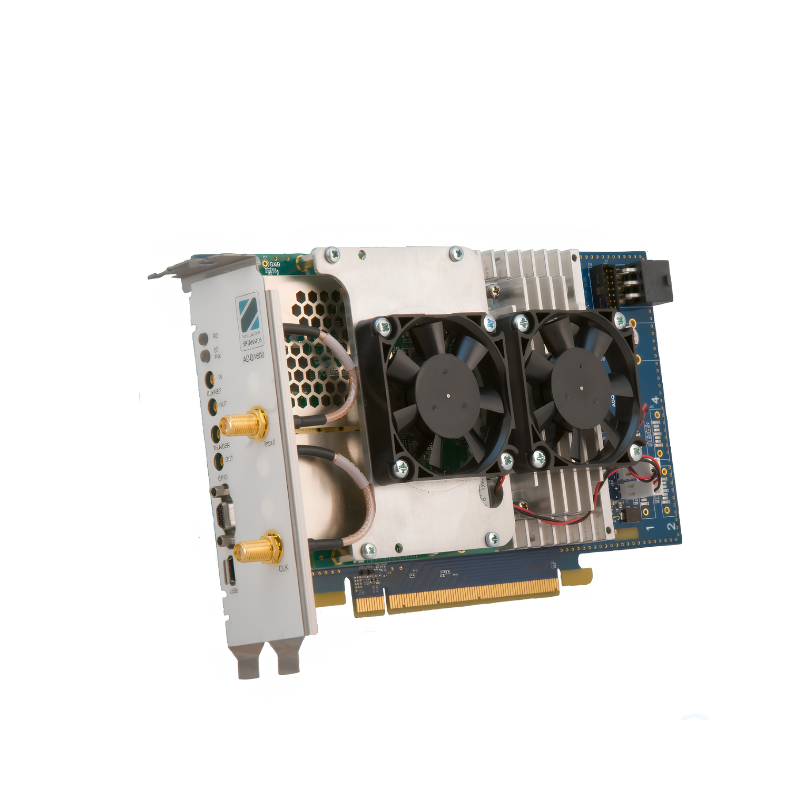

The ADQ1600RF (formerly named ADQ1600) is a world-leading 14 bit digitizer. With its unique 1600 MSPS capture rate, enabled by SP Devices’ ADC interleaving technology ADX, the ADQ1600RF opens for demanding measurements such as RF/IF sampling, high resolution ultra sound imaging and high-speed data recording.

The AFE of the ADQ1600RF is AC-coupled and optimized for spectral purity over a large bandwidth. The analog -3dB bandwidth is 750 MHz.

The digitizer connects to the host via a high-speed USB 3.0 cable for easy to use standalone operation. PXI Express or MTCA.4 µTCA interface is available for systems integration as a modular instrument. A PCIe version for integration into a PC is also available. All interface types allows for streaming of data at high transfer rates.

Applications

LiDAR
RADAR
Wireless Communication
Optical Transmission
High-speed Data Recording
Test and Measurement
Ultrasonic Ranging

Ordering Information

Options	Comment
Hardware Options
USB 3.0, PXIe, PCIe	Host PC interface
Firmware options
FWDAQ	Always included. Default data acquisition firmware.
DEVDAQ	Optional FPGA development kit based on FWDAQ.
Additional accessories
W5Y	Optional 2-year warranty extension (and 5 years in total).
Software
ADCaptureLab	Always included. Software for control and configuration.
LabVIEW
