14 bits vertical resolution
2 channels at 5 GSPS or 1 channel at 10 GSPS (software-selectable)
DC-coupled with up to 3 GHz input bandwidth (1 Vpp input range)
Programmable DC-offset
4 Gbyte onboard memory
Open FPGA for custom real-time signal processing requires DEVDAQ
Application-specific firmware options
Peer-to-peer streaming to GPU at 7 Gbyte/s

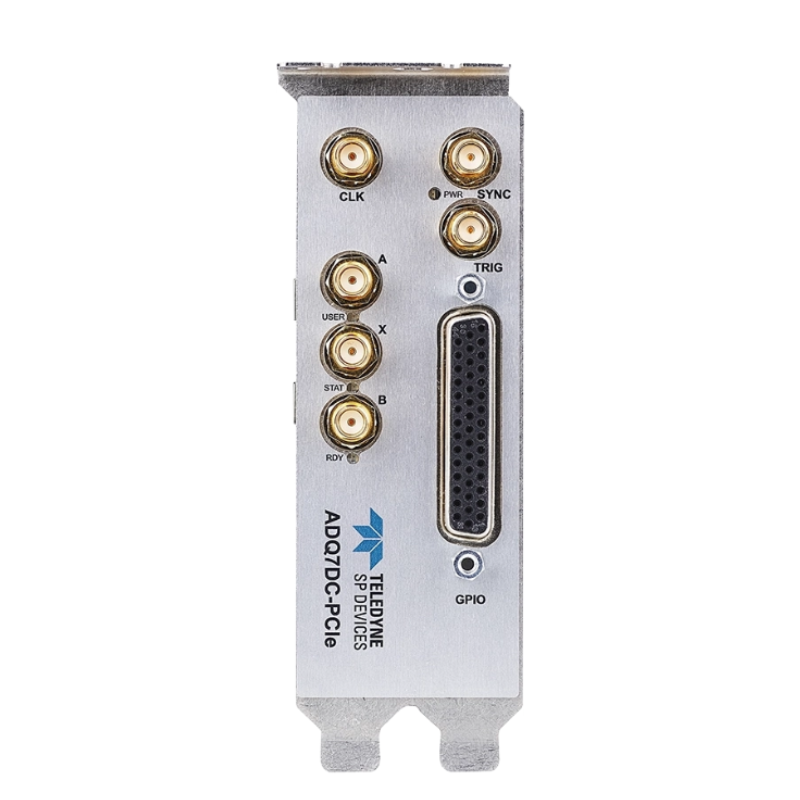

Hardware triggers and GPIO
PCIe, PXIe, USB3.0, 10 GbE form factors

Liên hệ

Mô tả
Đánh giá (0)

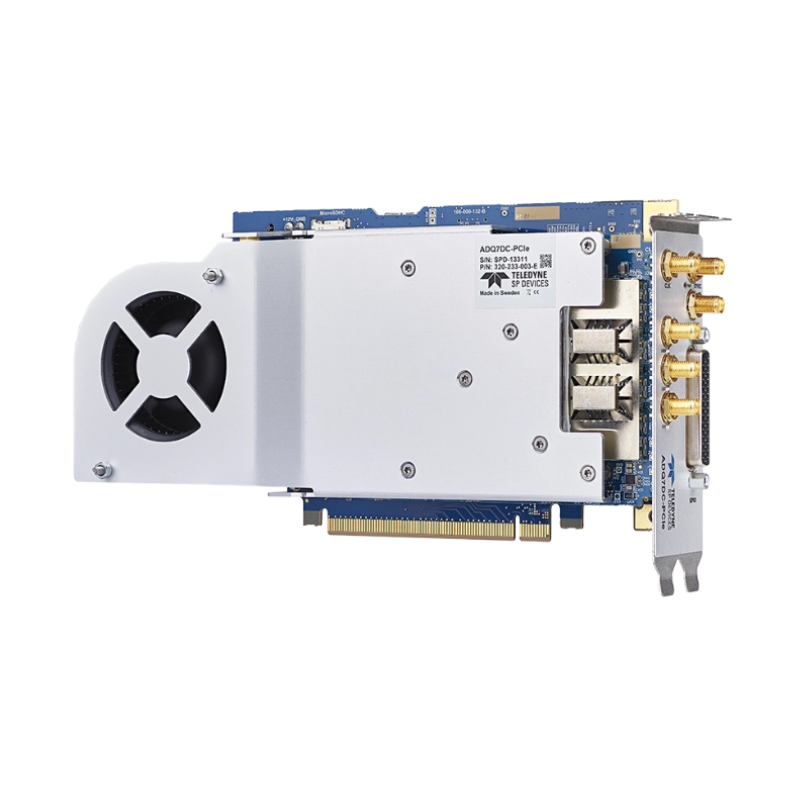

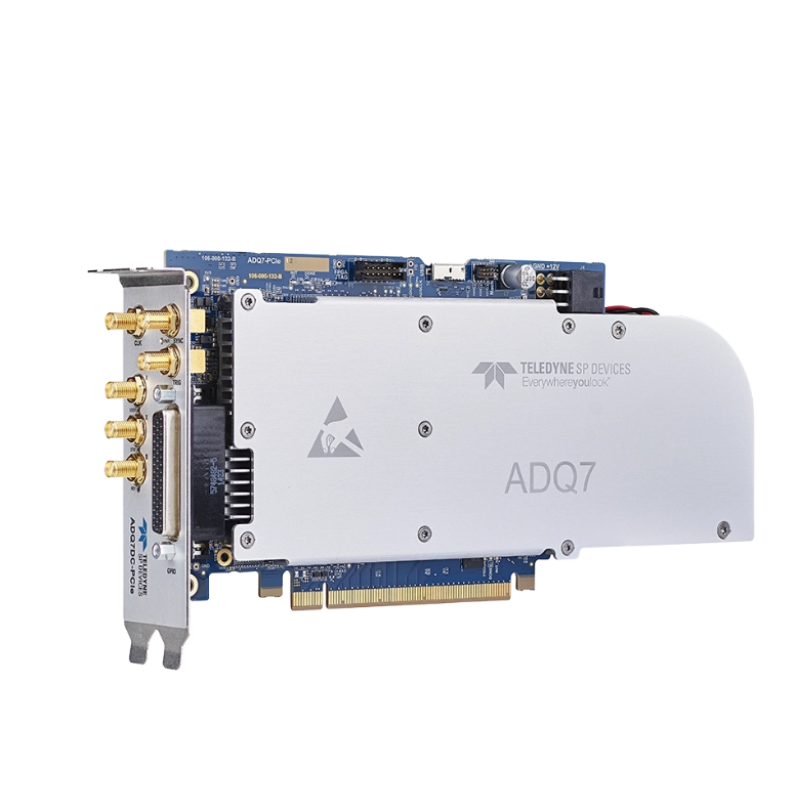

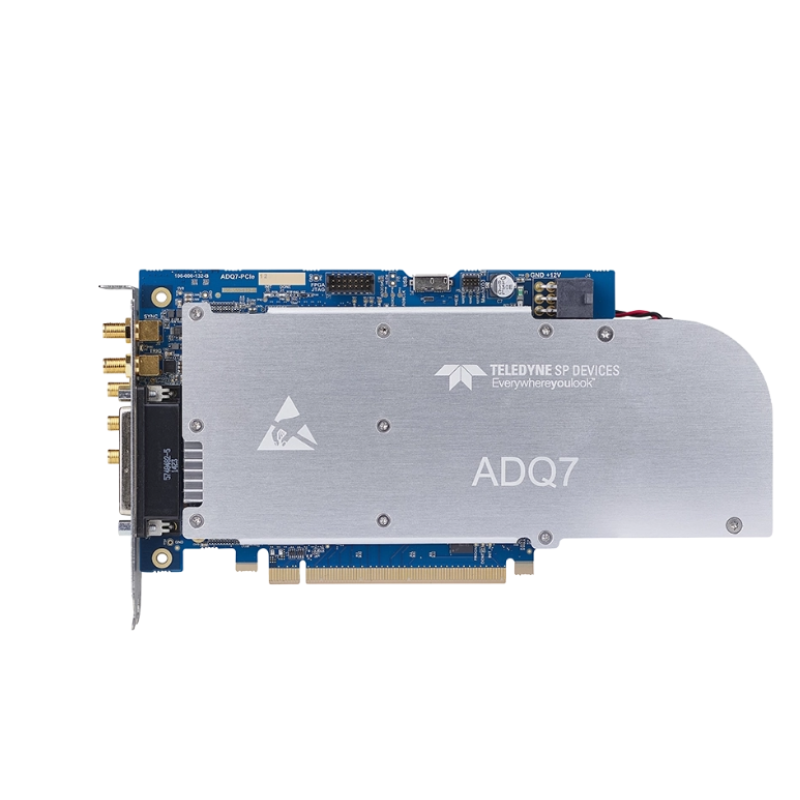

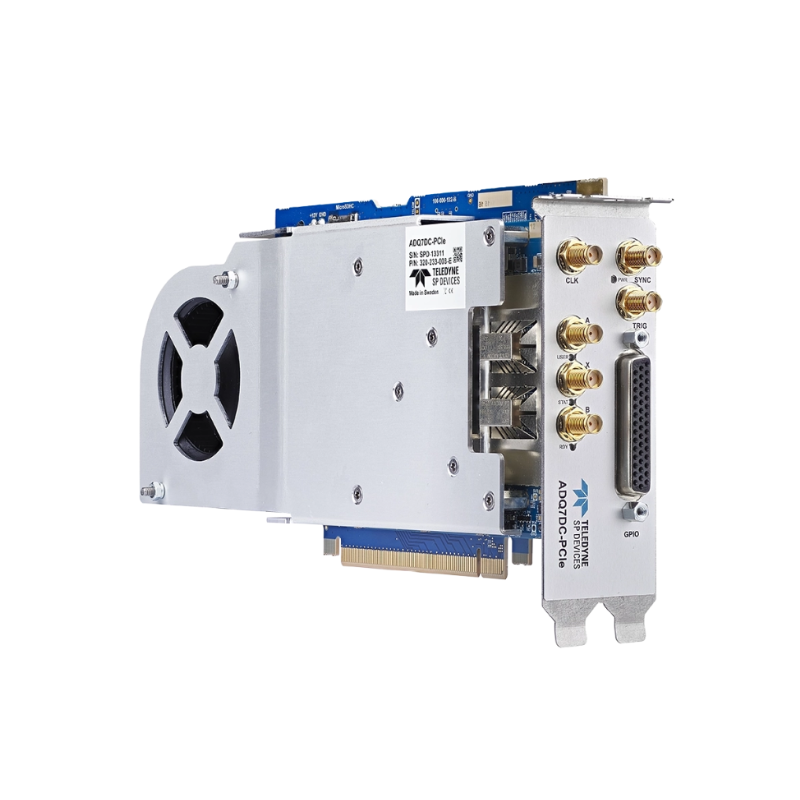

With 14 bits and 10 GSPS, ADQ7DC improves the resolution in high-sampling rate applications beyond what was previously possible. This performance-boost has effectively helped our customers overcome performance trade-offs and have led to significant advances in many applications. ADQ7DC can be operated in either single- or dual-channel mode with 10 or 5 GSPS sampling rate respectively.

The DC-coupled front-end supports variable DC-offset and contains a user-programmable digital noise-reduction filter. It also offers 3 GHz analog input bandwidth and therefore supports a wide range of sensors and applications.

Stand-alone firmware packages simplify operation and offer time-savings by providing a rich set of real-time application-specific functions without any need for FPGA firmware development.

Applications

Time-of-flight Mass Spectrometry
Imaging flow cytometry
LiDAR
RADAR
Wireless Communication
L-band direct sampling
High-speed RF data recording
Scientific instruments
Particle physics
Semiconductor test
ATE
Test and measurement
Quantum technology

Ordering Information

Options	Comment
Hardware Options
PCIe, PXIe, USB3.0, 10 GbE	Host PC interface
Firmware options
FWDAQ	Always included. Default data acquisition firmware.
FWATD	Optional waveform averaging firmware.
FWPD	Optional pulse detection firmware.
FW2DDC	Optional digital downconversion firmware.
DEVDAQ	Optional FPGA development kit based on FWDAQ.
Additional accessories
W5Y	Optional 2-year warranty extension (and 5 years in total).
Software
Digitizer Studio	Always included. Software for control and configuration.
LabVIEW
