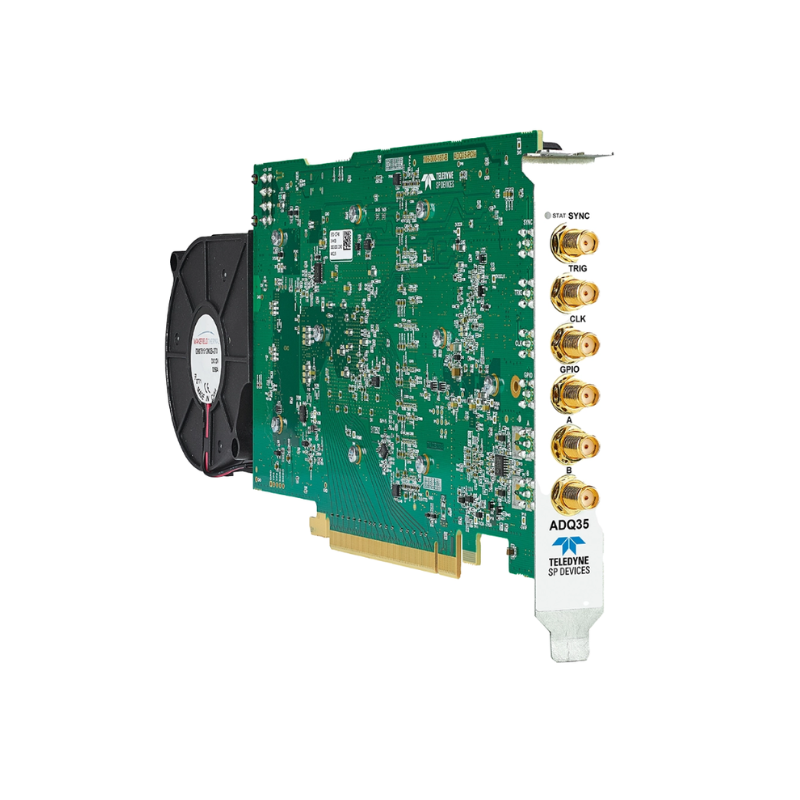

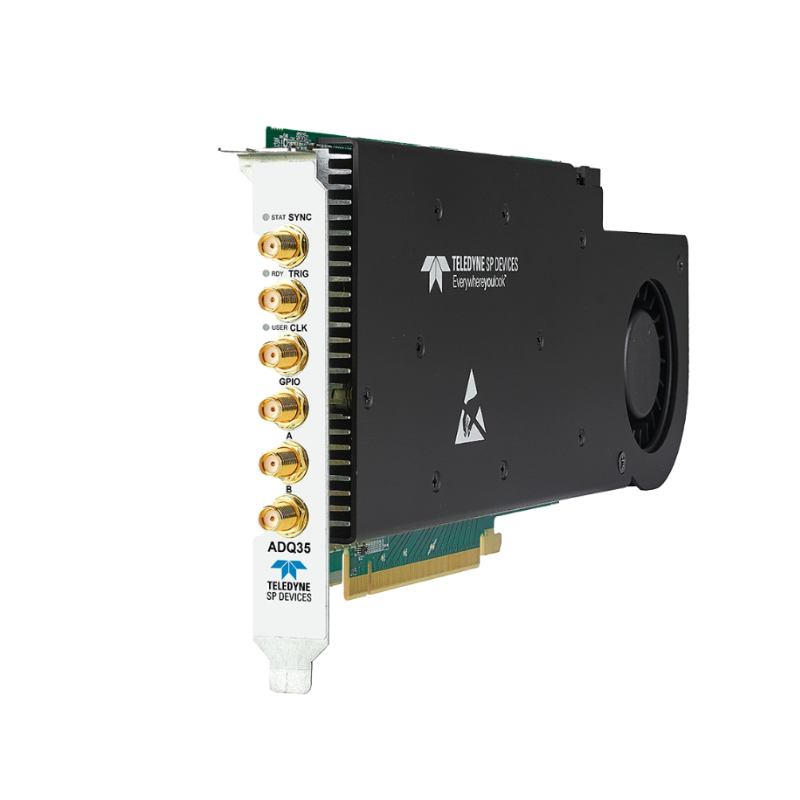

High-performance 12-bit, 10 GSPS digitizer ADQ35, ADQ35-WB, ADQ35-PDRX

High-performance 12-bit, 10 GSPS digitizer ADQ35, ADQ35-WB, ADQ35-PDRX

12 bits vertical resolution
2 channels at 5 GSPS or 1 channel at 10 GSPS
DC-coupled with up to 2.5 GHz input bandwidth (0.5 Vpp input range)
Programmable DC-offset
8 Gbyte onboard memory
Open FPGA for custom real-time signal processing requires DEVDAQ
Application-specific firmware options
Peer-to-peer streaming to GPU at 14 Gbyte/s

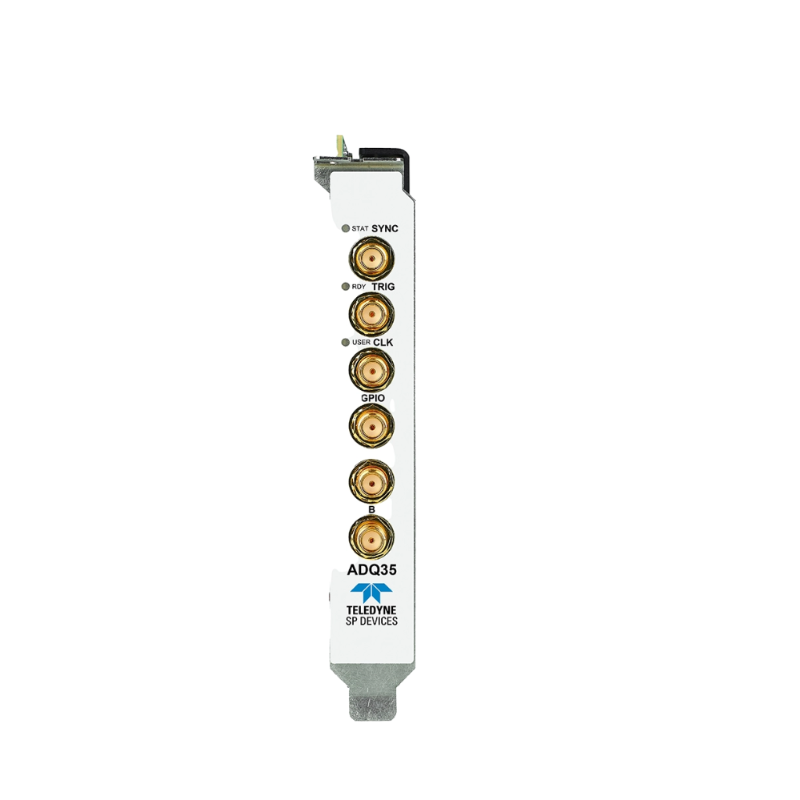

Hardware triggers and GPIO
PCIe, USB 3.2 form factor

Liên hệ

Mô tả
Đánh giá (0)

ADQ35 offers a two-channel configuration with 5 GSPS sampling rate or single-channel at 10 GSPS sampling rate. The programmable DC-offset makes it ideal for sampling unipolar signals. The open onboard AMD Kintex Ultrascale KU115 FPGA offers plenty of available resources for custom real-time digital signal processing (DSP). ADQ35 supports peer-to-peer streaming of up to 14 Gbyte/s either to the host PC or to graphics processing units (GPUs).

Applications

Swept-Source Optical Coherence Tomography (SS-OCT)
Time-of-Flight Mass Spectrometry
Distributed Fiber Optical Sensing
LiDAR
Scientific instruments
Scanning acoustic microscopy
ATE

Ordering Information

Options	Comment
Hardware Options
PCIe, USB 3.2	Host PC interface
Firmware options
FWDAQ	Always included. Default data acquisition firmware.
FWATD	Optional waveform averaging firmware.
FWPD	Optional pulse detection firmware.
DEVDAQ	Optional FPGA development kit based on FWDAQ.
Additional accessories
W5Y	Optional 2-year warranty extension (and 5 years in total).
Software
Digitizer Studio	Always included. Software for control and configuration.
